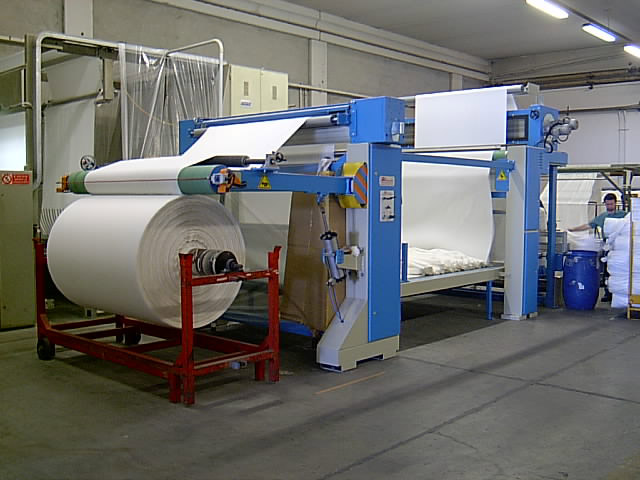

T-LP LINE PREPARATION RAW FABRIC

Description:

PREPARATION MACHINES are modular and built accordingly to client’s need.
Works carried out: unrolling,sorting,sewing head to tail stitching of pieces,roll winding or pleated.

Characteristics:

Components:

  • Preparation line with automatic feeding rolls and plaited fabric at exit.
  • Loading and automatic feeding of rolls into automatic platform and stitching section.
  • Sewing system with cradle.
  • Conveyor belt for feeding rolls
  • Sewing system with double cradle,j box,and driving system for constant tension of fabric.
  • Linear rail for automatic cycle head to tail straight seams with a pneumatic blocking and stitch sewing system.Linear rail equipped with two sewing machines.
  • Automatic sewing system with automatic tension device,rein forcing the two ends of the seams,and suction of vacuum waste and automatic thread trimmer at the end of sewing process.
  • Fabric exit in folded form or with tangential/axial winder.
Options:

Roll preparation is done while the sewed fabric in running

Unwinding fabric’s speed: 180 m/min
